Towables
We offer a broad range of options to add to your new lateral move or pivot for increased efficiency.
Two-Wheel Kwik Tow – Sets the standard for small field towable pivot systems.
Four-Wheel Pivot Mover – Quickly adapts to movement in any direction. Wheel hubs are mounted on base beams and can be quickly swiveled 90º. The quick hitch can be moved to any side for towing.
Reverse Tow Steering Linkage – Accurately guides intermediate towers when being towed in reverse. Available only on Reinke towable systems. A reverse Tow package allows standard towable systems to be towed from the pivot (forward) or from the end tower (reverse).
Towable Gearbox – Specially designed Reinke TNT towable gearbox is used on all Reinke towable systems.
Engine Driven Mini Pivot
The Reinke Engine Driven Mini Pivot is ideal for smaller fields. When configured to be towable, the Engine Driven Mini Pivot can be moved quickly using a pickup or small tractor. You set the speed at a constant rate, and because you choose from a 30:1, 40:1 or 60:1 center drive gearbox, you can determine the maximum application rate for your system to match your soil type. Choose from a wide range of span lengths and end booms with a maximum system length up to 318′.
Pipe Options
- Galvanized
- Stainless Steel
- Chromium Nickel+
- Aluminum

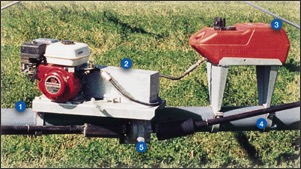

Mini Pivot Drive Train
- Engine
- Drive Link
- Fuel Tank
- Pivot Tower Base
- Worm Drive
